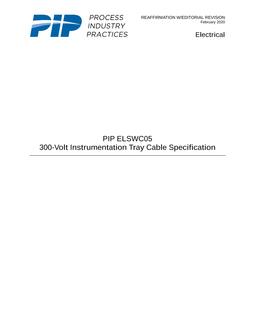

300-Volt Instrumentation Tray Cable Specification
standard by Process Industry Practices, 02/01/2020

Format: PDF      In Stock



Category:

NOTE: Our website provide PDF immediately download, sometimes when the payment is processed and you did not receive the file, please feel free to connect with us.

Description

This Practice describes the technical requirements for manufacturing, inspection, testing, and shipping of insulated copper or thermocouple alloy conductor cable for 300-volt-rated multiple conductor instrumentation tray cable in single and multiple pair and triad construction. Pairs or triads may include individual shields and/or an overall shield.

Product Details

Published:
02/01/2020
Number of Pages:
11
File Size:
1 file , 220 KB
Note:
This product is unavailable in Belarus, Russia, Ukraine
